Rotron

RT700-XE

Rotron RT700-CR Rotary Engine
High Performance

Rotron’s Ultimate Powerhouse

The RT700-XE powerhouse is the benchmark of propulsion system evolution and the result of a 5 year engineering development programme with the legendary Brian Crighton. This ultra high-performance engine offers the greatest power-to-weight ratio of any normally aspirated internal combustion engine. It generates a staggering 319hp per litre with a tremendous spread of torque and a power delivery that is extremely linear.

Rotron RT700-CR Rotary Engine

  • Max Peak Power220hp
  • Core Weight24kg (52.9lbs)
  • System Weight43kg (94.8lbs)
  • Displacement690cc

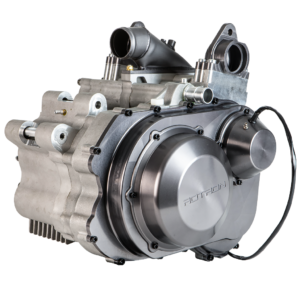

Rotron RT700-CR Wankel Rotary Engine - Right Side

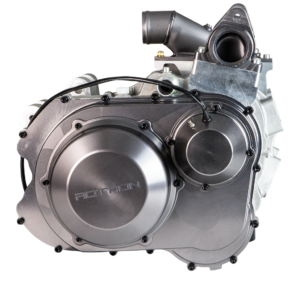

Rotron RT700-CR Wankel Rotary Engine - Front

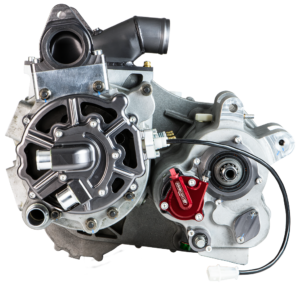

Rotron RT700-CR Wankel Rotary Engine - Rear

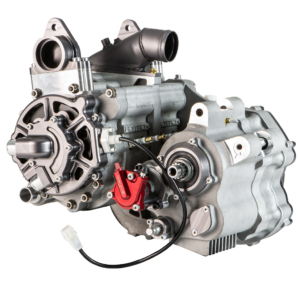

Rotron RT700-CR Wankel Rotary Engine - Left Side

Technical Specifications

Engine TypeTwin [2] Rotor, Rotary Wankel
Displacement690cc
ApplicationPerformance / Racing
Max. Peak220HP
Max. Peak RPM10500RPM
Max. Torque105 FT/LBS
Max. Torque RPM9500RPM
Core Weight24 KG / 952.9LBS
System Weight43 KG / 94.8 LBS
Drive TypeSprocket / Chain 520
Drive RotationCounter-Clockwise
Fuel SystemFuel Injection
Fuel TypeUnleaded 95 Octane or higher
Fuel Consumption0.58 LBS / Per HP / Per Hour
CoolingLiquid Cooling
Starting DeviceElectric Onboard
Ignition SystemProgrammable fuel injection with canbus
Generator300W 12V
